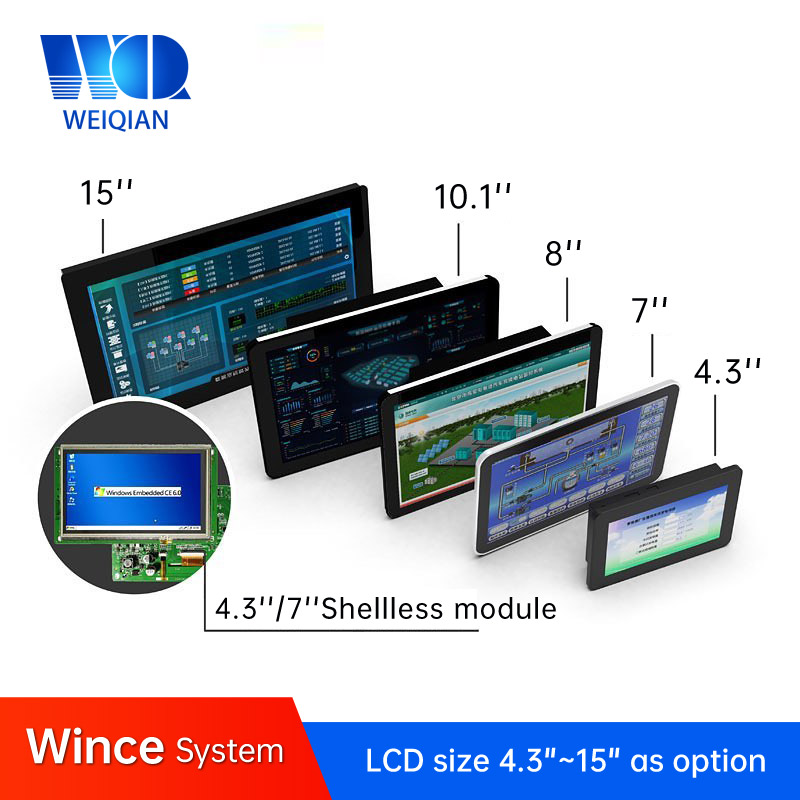

7 inch WinCE Panel PC with Shell-less Module
Parameters
| Product model | WLT-070R-NN00 |
| Basic parameters | CPU：ARM9 architecture ; Frequency 300MHZMemory: 64MB DDR2Flash：128MB NandFlash |
| Display screen | Size：7 inchResolution：800×480Wide-temperature type，64K colors or 260K colorsLED backlight：lifetime > 25000 hours |
| Touch screen | 4-wire Resistance touch screen（driver inside） |
| Hardware interface | 2 channel 3-wire RS-232 serial port（COM1,COM2）1 channel USB device interface，support ActiveSync connect to PC to exchange data and debug application.1 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel TF slot, support SD/TF card.1 channel DC12V~24V Power Input interface. |
| OS | Windows CE 6.0 |
| Defend degree | / |
| Working Environment | Power：12V~24V DC，600mAworking Temperature：-10~60℃ storage temperature：-20~80℃working humidity：10～90%RH |
| Size | No shellpower：12~24Vsize：188x110x29.1 （mm）Trepanning size ：167.2x105.5 (mm) |
| Application area | industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. |
| Software support | Flash FAT file system protection function.IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++, Labview development.Easy change the user-defined splash screen.Support display screen rotation (degree: 0/90/180/270) |
Interface definition
| 1. VCC: DC+12~24V | 2. VCC: DC+12~24V |
| 3. GND | 4. GND |
| 5. GND | 6. COM2-RX of RS-232 |
| 7. COM2-TX of RS-232 | 8. GND |
| 9. COM1-RX of RS-232 | 10. COM1-TX of RS-232 |
Exterior size
Exterior size：188x110x29.1（mm） Trepanning size ：167.2x105.5（mm）
