21.5 inch Windows Panel PC
Parameters
| Product model | WPC-215C-JMS0 |
| Basic parameters | CPU:Quad -core J1900 ; Frequency 2.0GHzIntegrated graphics: HD Grahics
Memory:4GB(8G as option)DDR3 SSD:64GB |
| Display screen | Size :21.5 inchResolution :1920×1080
Wide-temperature type, 16000k colors or 24-bit true colors LED backlight:lifetime > 25000 hours |
| Touch screen | Capacitive touch screen |
| Hardware interface | 1 channel VGA interface 3 channel RS-232 interface
1 channel RS-485 interface 1 channel HDMI interface 1 channel USB Host3.0 interface , support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel USB Host2.0 interface , support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 1000M Ethernet interface 1 channel 3.5 audio interface +1 channel MIC interface 1 channel DC5.5-2.1(DC12V) power input interface 1 channel power button switch |
| OS | Windows10/Windows7 |
| Defend degree | IP65 (front panel) |
| Working environment | power:DC 12V/5Aworking temperature:-10~55℃
storage temperature:-20~80℃ working humidity:10～90%RH |
| Size | Shell structure:MetalPanel size:552x339(mm)
Trepanning size:537.3x325.7 (mm) |
| Application area | industrial control, detection device, instruments and meters, security monitoring, medical apparatus and instruments, intelligent terminals embedded high-end application. |
| Software support | Support universal Windows development softwareEasy change the user-defined splash screen. |
Interface definition
| 1 Power switch | 2 Power interface |
| 3 HDMI interface | 4 VGA interface |
| 5 1000M Ethernet interface | 6 1000M Ethernet interface |
| 7 USB Host interface | 8 MIC interface |
| 9 Audio interface | 10 COM4-232/ COM3-232/ COM2-232/COM1-485 interface (from left to right) |
2.1 RS-232 interface
3 channel RS-232 serial port, support the highest-level baudrate 115200bps. The corresponding port in Windows system : COM2 ,COM3 , COM4.
2.2 RS-485 interface
The corresponding port in Windows system is COM1.

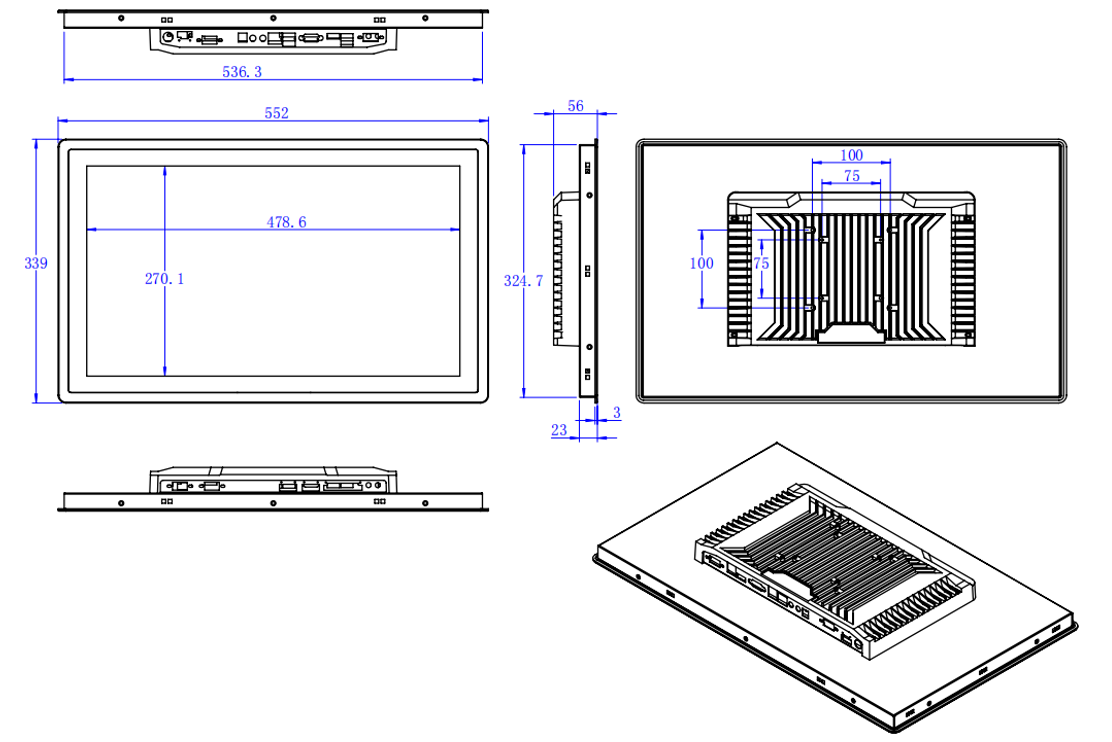

Exterior size
Exterior size:552x339x56 (mm) Trepanning size:537.3x325.7 (mm)
