7 inch Android Industrial Panel PC
Parameters
| Product model | WAR-070C (R) -IP10 |
| Basic parameters | CPU： Quad-core Cortex-A7 architecture ; Frequency 1.2GHzMemory：1GB DDR3Flash：8GB NandFlash |
| Display screen | Size：7 inchResolution：1024×600Wide-temperature type，16000k colors or 24 true colorsLED backlight：lifetime > 25000 hours |
| Touch screen | Capacitance touch screen |
| Hardware interface | 4 channel 3-wire RS-232 serial port（COM1,COM2,COM5,COM6）2 channel RS-485（COM3、COM4）1 channel CAN bus（optional）.1 channel USB device interface, support ADB connect to PC to exchange data and debug application.2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 1000M Ethernet interface.1 channel 3.5mm Audio interface.1 channel SD/MMC slot,support SD/MMC card .1 channel WIFI module （optional）. 1 channel Bluetooth module（optional）. 1 channel DC12V~24V Power Input interface . |
| Attention | When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. |
| OS | Android 7.1.1 |
| Defend degree | IP65 (front panel) |
| Working environment | power：DC 12V-24V （24V as recommendation)working Temperature：-10~55℃ storage temperature：-20~85℃working humidity：10～90%RH |
| Size | shell structure：plasticpanel size：206.00×142.00 （mm）trepanning size：195.6×131.6 （mm） |
| Application area | industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment. |
| Software support | Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen. |
Interface definition
| 1 CANL | 2 CANH |
| 3 GND | 4 RS-232 ( COM6-RX) |
| 5 RS-232 ( COM6-TX) | 6 RS-232 ( COM5-RX) |
| 7 RS-232 ( COM5-TX) | 8 RS-485 ( COM4-485B) |
| 9 RS-485 ( COM4-485A) | 10 GND |
| 11 RS-485 ( COM3-485B) | 12 RS-485 ( COM3-485A) |
2.1 RS-232 interface
4 channels，support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 、COM2、COM5 、COM6.
2.2 RS-485 interface
The corresponding port in Android system is COM3、COM4. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .
2.3 CAN Bus interface
There is a CAN-Bus interface and a CAN-Bus driver. The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .

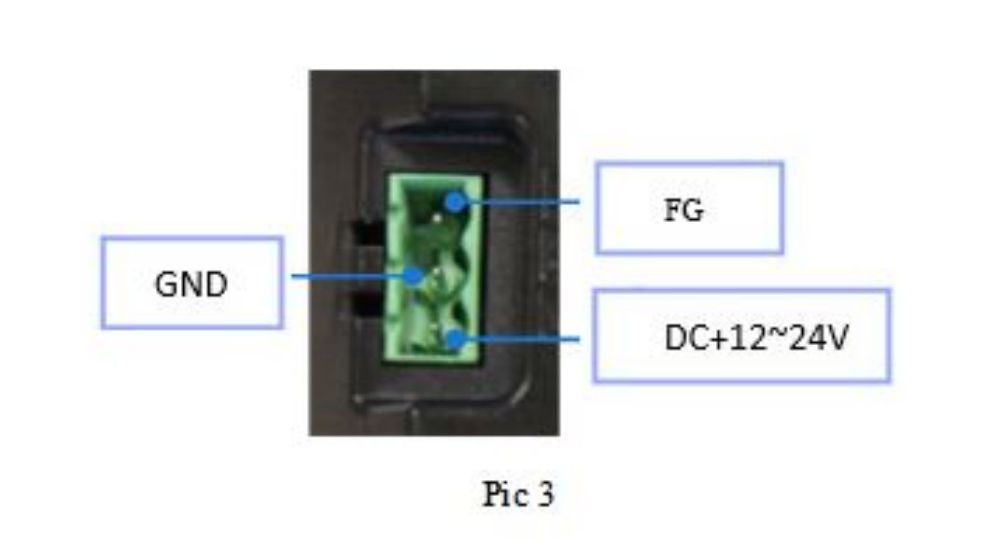

2.4 Power interface
Exterior size
Exterior size：206×142（mm） Trepanning size：195.6×131.6（mm）
