7 Inch Linux Industrial Panel PC

Short Description:


Product Detail

Product Tags

INDUSTRIAL SCREEN
Android
andorid---ip65

Parameters

Product model WLX-070C-SP10/WLX-070R-SP10
Basic parameters CPUQuad-core Cortex®-A9 architecturefrequency 1.4GHzMemory1GB DDR3Flash8GB NandFlash
Display screen Size7 inchResolution1024×600Wide-temperature type16000k colors or 24-bit true colorsLED backlightlifetime > 25000 hours
Touch screen Capacitance/Resistance touch screen
Hardware interface 4 channel 3-wire RS-232 serial portCOM1,COM2,COM3,COM4( Isolated as optional)2 channel RS-485COM1COM2multiplex as RS-232 (COM1COM2)Isolated as optional1 channel isolated CAN bus.optional1 channel USB device interface,support ADB connect to PC to exchange data and debug application .2 channel USB Host interfacesupport usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot,support mini SD/MMC .1 channel 3.5mm earphone output interface.1 channel built-in WIFI .optionalDC12V~24V,  industrial power solutionhigher reliability.Built-in WIFI , Bluetooth module .optional
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Linux
Defend degree IP65 (front panel)
Working environment powerDC 12V-24V 24V as recommendation)working Temperature-10~55℃    storage temperature-20~80℃working humidity1090%RH
Size shell structureplasticpanel size206.00×142.00 mmtrepanning size195.6×131.6 mm
Application area industrial controldetection deviceinstruments and meterssecurity monitoringmedical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment.
Software support Support Eclipse, QT Creator, Arm linux gcc/g++ compiler, shell programming, STL library, Python2.7 development, support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen.Support display screen rotation (degree: 0/90/180/270).

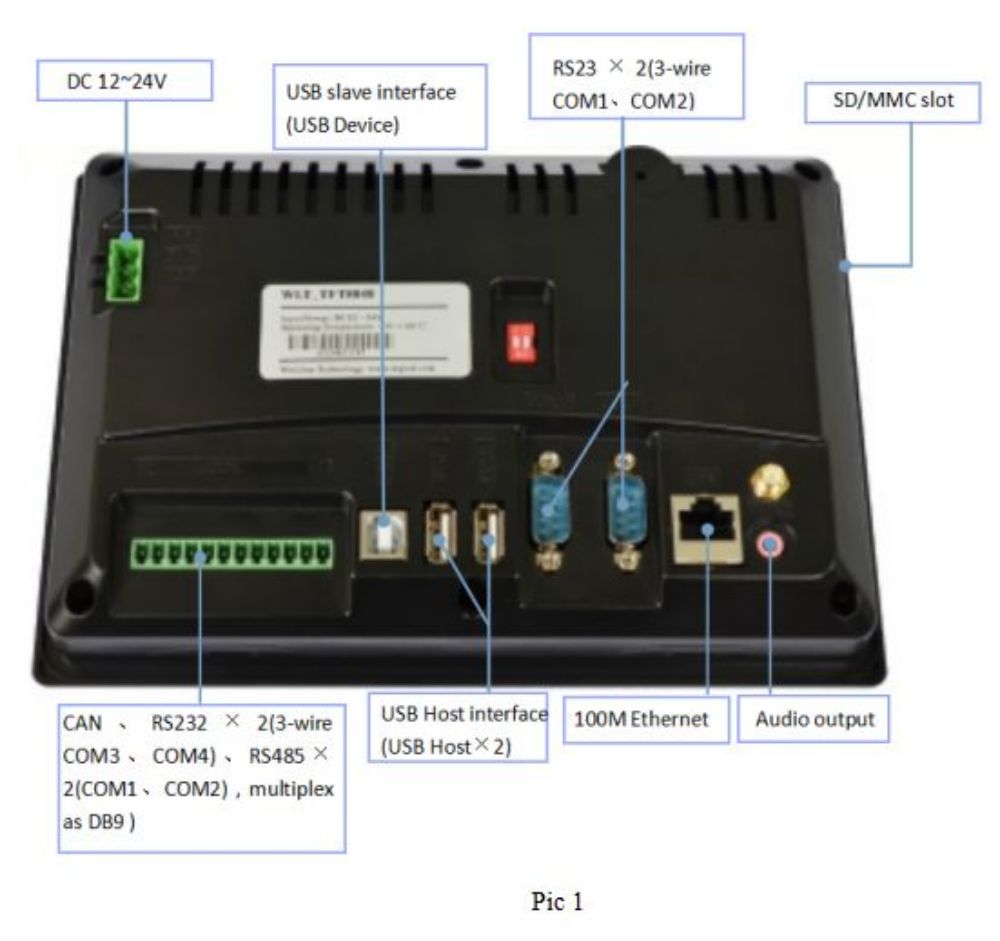

Interface definition

cxvc1
cxvc3
1  CANL 2 CANH
3 GND 4 COM3-RX of RS-232
5 COM3-TX of RS-232 6 COM4-RX of RS-232
7 COM4-TX of RS-232 8 COM2-485B
9 COM2-485A 10 GND
11 COM1-485B 12 COM1-485A

2.1 RS-232 interface

4 channel serial portsupport the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM4. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485.

2.2 RS-485 interface

The corresponding port in Linux system is COM1COM2. And COM1/COM2 is a multiplexing of COM1/COM2 of RS-232 interface. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .

2.3 CAN Bus interface

The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .

2.4 Power interface

cxvc2

Exterior size

Exterior size:206×142(mm)            Trepanning size:195.6×131.6(mm)

cxvc4

asdzxcxzc1 asdzxcxzc2 asdzxcxzc3 asdzxcxzc4 asdzxcxzc5 asdzxcxzc6 asdzxcxzc7 asdzxcxzc8 asdzxcxzc9 asdzxcxzc10 asdzxcxzc11
