X86 Windows Industrial MINI PC
Parameters
| Product model | WPC-HDMI-XM30 |
| Basic Parameters | CPU：I3-7100，Frequency 2.4GHz (I5/I7 as option)Integrated graphics: HD Grahics 620Memory ：4GB DDR4（8G as option）（Maximum20G）
SSD：64GB（Maximum 2TB） |
| Hardware interface | 1 channel VGA interface5 channel RS-232 interface1 channel RS-485 interface
1 channel HDMI interface ( Resolution 1080P) 2 channel USB Host3.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc. 4 channel USB Host2.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc. 2 channel 1000M Ethernet interface 1 channel 3.5 audio interface 4 channel IO input/output interface External Antenna interface （optional WIFI） 1 channel DC5.5-2.5(DC12V) power input interface 1 channel power button switch WIFI、4G(None GPS) (2 CHOOSE 1) |
| OS | Windows10/ Windows7 |
| Defend degree | |
| Working environment | power：DC 12V/3Aworking temperature：-10~55℃storage temperature：-20~80℃
working humidity：10～90%RH |
| size | Shell structure: Metal |
| Application area | industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. |
| Software Support | Support universal Windows development software. |
Interface definition

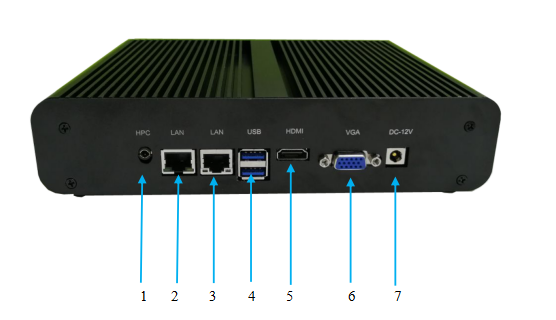

| 1 Audio interface | 2 1000M Ethernet interface |
| 3 1000M Ethernet interface | 4 USB Host interface 3.0（USB host） |
| 5 HDMI interface | 6 VGA interface |
| 7 Power interface |

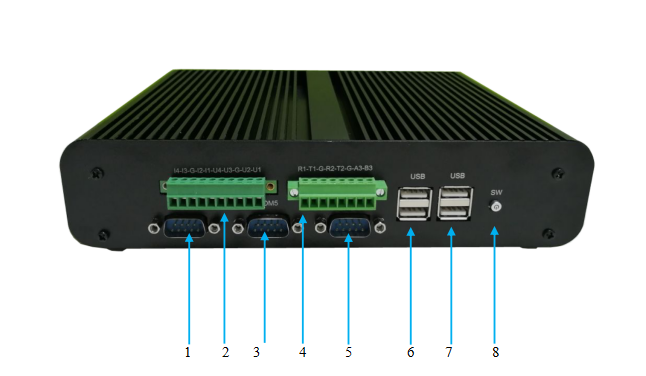

| 1 DB9-232(COM4) | 2 IO interface (4 input 4 output) |
| 3 DB9-232(COM5) | 4 Serial port (COM1-232/ COM2-232/ COM3-485) |
| 5 DB9-232(COM6) | 6 USB Host interface 2.0 |
| 7 USB Host interface 2.0 | 8 Button switch |
2.1 RS-232 interface
5 channel RS-232 serial port，support the highest-level baudrate 115200bps. The corresponding port in Windows system :COM1、COM2、COM4、COM5、COM6.
2.2 RS-485 interface
The corresponding port in Windows system is COM3.

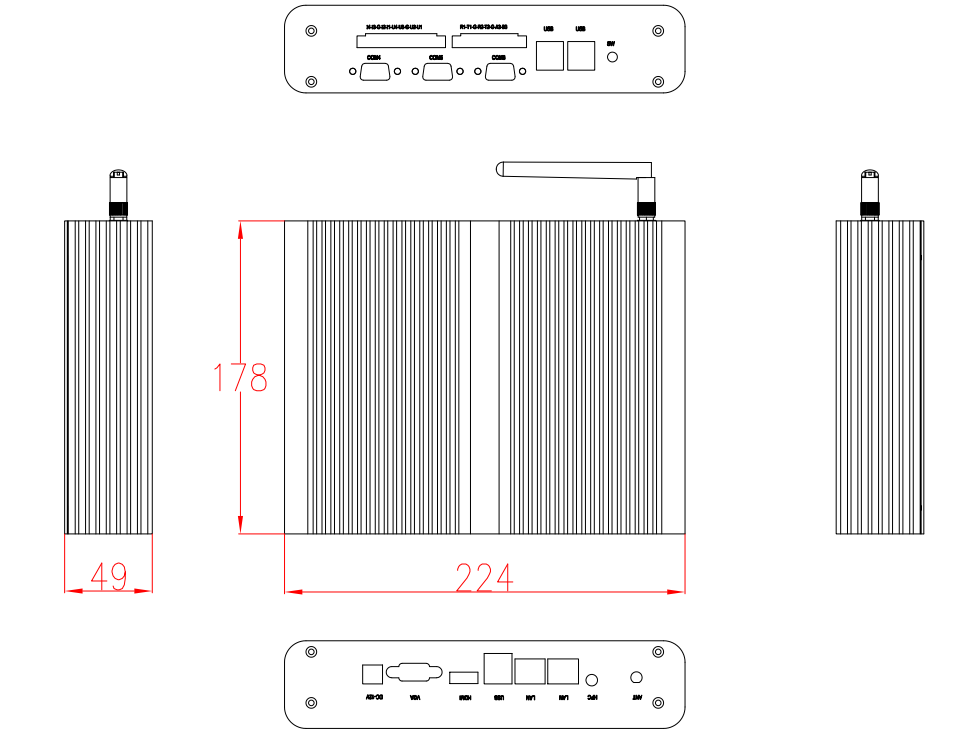

Exterior size
Exterior size：224x178x49 （mm）
